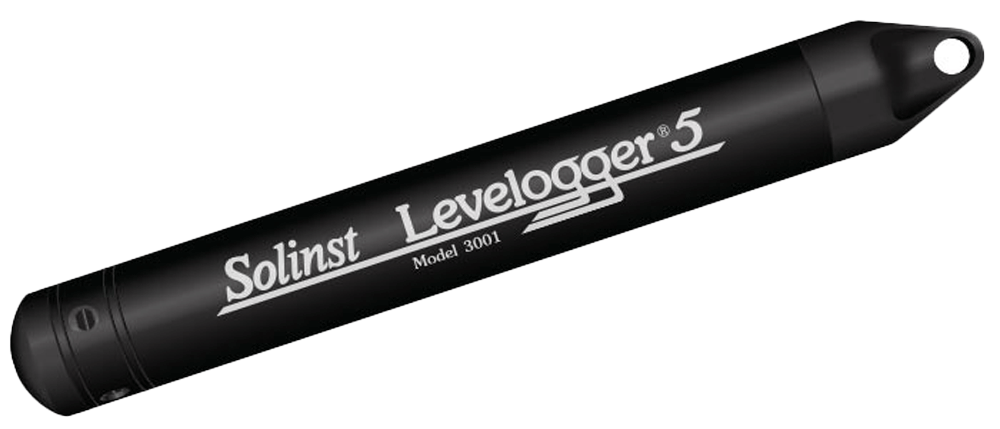

    The Levelogger 5
    The Levelogger 5

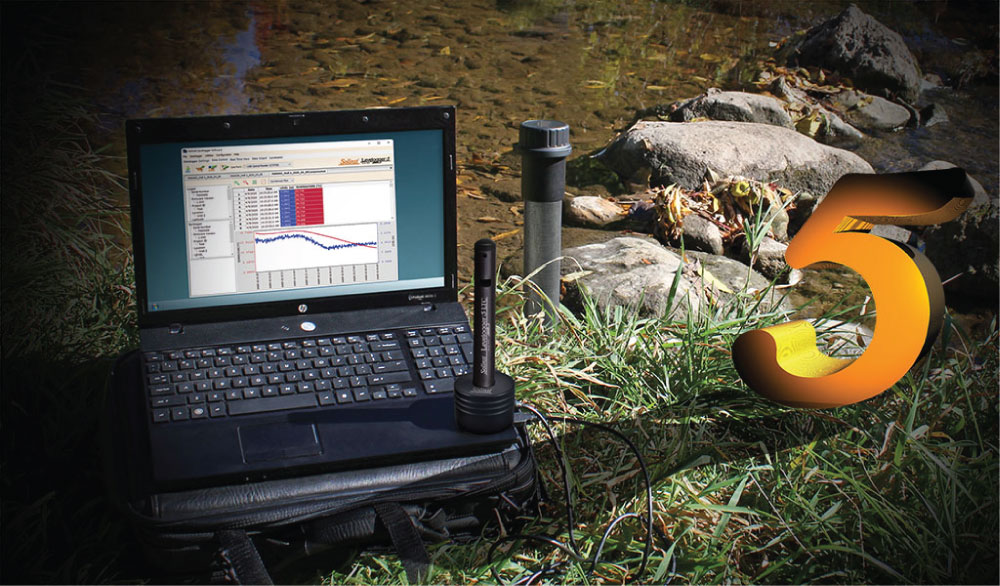

    The Levelogger 5 outside with a computer
    The Levelogger 5
    The Levelogger 5
    The Levelogger 5 outside with a computer
    Solinist

    Levelogger 5

    Daily Rate $25

    Weekly Rate $75

    Monthly Rate $215

    Solinst Levelogger 5 — the 5th generation Levelogger brings over 25 years of engineering and design experience with it. Everything about the new Levelogger 5 design focuses on providing high-quality water level data our customers can rely on, with all of the accuracy and ease of use expected from Solinst. The Levelogger 5 is a self contained water level datalogger, using infra-red data transfer powered by a 10 year lithium battery, offering the flexibility of installing by use of a Direct Read Cable, wireline or Kevlar cord. The Levelogger 5 has a memory capacity of 150,000 temperature and water level data points.

    Description


    Levelogger

    Features

    • Increased memory: 100,000 sets of data

    • More stable communication: single-eye optical,
      easy to clean, more scratch resistant


    • Stronger, robust design: double o-ring seals for
      two times over pressurization rating

    • Better thermistor and conductivity sensitivity:
      upgraded platinum RTD and conductivity sensor

    • Superior protection in harsh conditions: baked-on
      coating using polymerization—inside and out


    Specifications

    Level Sensor

    Piezoresistive Silicon with Hastelloy Sensor
    Ranges
    5, 10, 20, 30, 100, and 200 m
    Accuracy
    ±0.05% FS
    Resolution
    0.001% FS to 0.0006% FS
    Units of Measure
    cm, m, ft, psi, kPa, bar (ºC, ºF)
    Normalization
    Automatic Temperature Compensation
    Temp Comp. Range
    0ºC to 50ºC

    Temperature Sensor

    Platinum Resistance Temperature Detector (RTD)
    Accuracy
    ±0.05ºC
    Resolution
    0.003ºC

    Conductivity Sensor

    4-Electrode Platinum
    Full Range
    0 – 100,000 µS/cm
    Calibrated Range
    50 – 80,000 µS/cm
    Accuracy
    ±1%: 5,000 µS/cm – 80,000 µS/cm;
    greater of ±2% or 15 µS/cm: 50 µS/cm –5,000 µS/cm


    Resolution
    ±0.1 µS/cm
    Temp Comp. Range
    0ºC – 50ºC
    Normalization
    Specific Conductance @ 25˚C
    Battery Life
    8 Years (1 reading every 5 minutes)
    Clock Accuracy (typical)
    ±1 minute/year (-20ºC to 80ºC)
    Operating Temperature
    -20ºC to 80ºC
    Maximum Readings
    100,000 sets of readings
    Memory
    Slate or Continuous
    Communication
    Optical high-speed: 57,600 bps with USB
    Size
    22 mm x 208 mm (7/8" x 8.2")
    Weight
    197 grams (6.95 oz)
    Corrosion Resistance:
    Wetted Materials
    Platinum, Delrin®, Viton, 316L Stainless Steel,
    Hastelloy, Regulator approved PFAS-free PTFE
    (inside and out)
    Sampling Mode
    Linear, Event & User-Selectable with Repeat Mode,
    Future Start, Future Stop, Real-Time View
    Measurement Rates
    2 seconds to 99 hours
    Barometric Compensation
    Software Wizard and Barologger 5
