Solinist

Model 101 Water Level Meter

Daily Rate: $20 (100' Tape) $23 (200' Tape) $25 (300' Tape) $35 (500' Tape) $45 (1000' Tape)

Weekly Rate: $50 (100' Tape) $60 (200' Tape) $65 (300' Tape) $96 (500' Tape) $125 (1000' Tape)

Monthly Rate: $170 (100' Tape) $180 (200' Tape) $195 (300' Tape) $290 (500' Tape) $350 (1000' Tape)

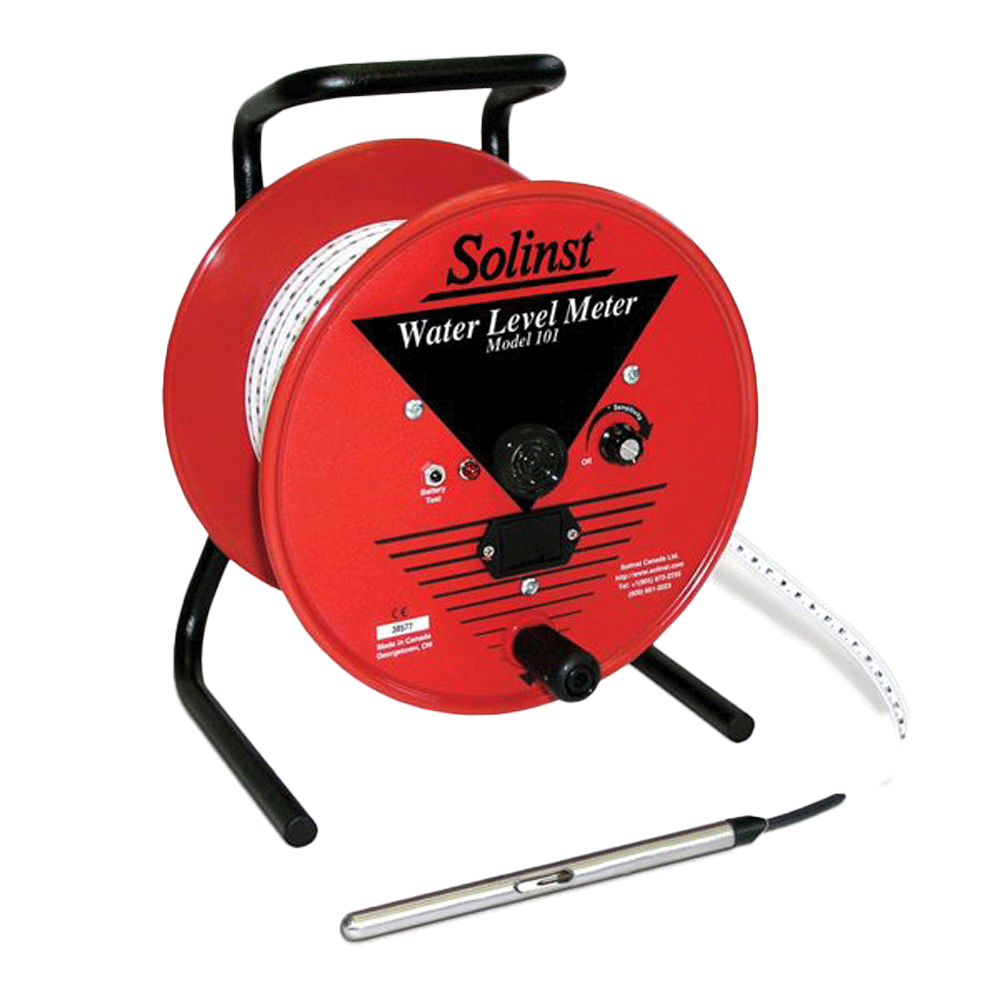

Solinst 101 Water Level Meter with P7 Probe features an extremely durable, laser marked PVDF flat tape, with an enhanced dog bone design that is thicker, reducing adherence to the side of well casing.

Durable PVDF non-stretch tape
Improved electrical properties
Thicker dog bone design prevents clinging to sides of the well
Permanently laser marked every 1/100 ft or each mm
The PVDF flat tape is laser marked every 1/100 ft or each mm; lengths up to 5000 ft (1500 m). New flat tape has increased tensile strength and electrical efficiency by using 6 strands of copper coated stainless steel and 13 strands of stainless steel in each conductor. The P7 Water Level Meter Probe is engineered to allow submersion to 1000 ft. (300 m). Sensor at the tip of the probe provides consistently accurate measurements in wells, boreholes, and cascading water, with almost zero displacement.

Description


Solinist Model 101 Water Level Meter



Features

  • Durable PVDF non-stretch tape

  • Improved electrical properties

  • Thicker dog bone design prevents clinging to sides of the wall

  • Permanently laser marked every 1/100 ft or each mm



Specifications

Specifications

Operating Temperature of reel
-20°C to +50°C
Submerged operating temperature (tape/probe)
-20°C to +80°C


Wetted materials (tape/probe)
P7: PVDF, Santoprene, ®Delrin, ®Viton,
316 stainless steel
P2: MDPE, neoprene, Delrin,
316 stainless steel
Probe pressure rating
P7: Fully submersible to depth of all tape
lengths


Reel IP Rating
IP64 (dust and splash proof)
Tape Lengths
P7
100 to 5000 ft, 30 - 1500 m
P2
100 to 1000 ft, 30 - 300 m

Resources


Solinist Model 101 Water Level Meter DataSheet



Media

101 Power Winder Demonstration with Solinist Water Level Meter

How To Operate: Solinist Well Casing & Depth Indicator: Metal Well Casing Detection: Total Well Depth

Benefits of Solinist 101, Water Level Meter with P7 Probe

Jnac - Solinist 101 P7 water level
