Model 107 Meter 100′

Daily Rate $45

Weekly Rate $145

Monthly Rate $445

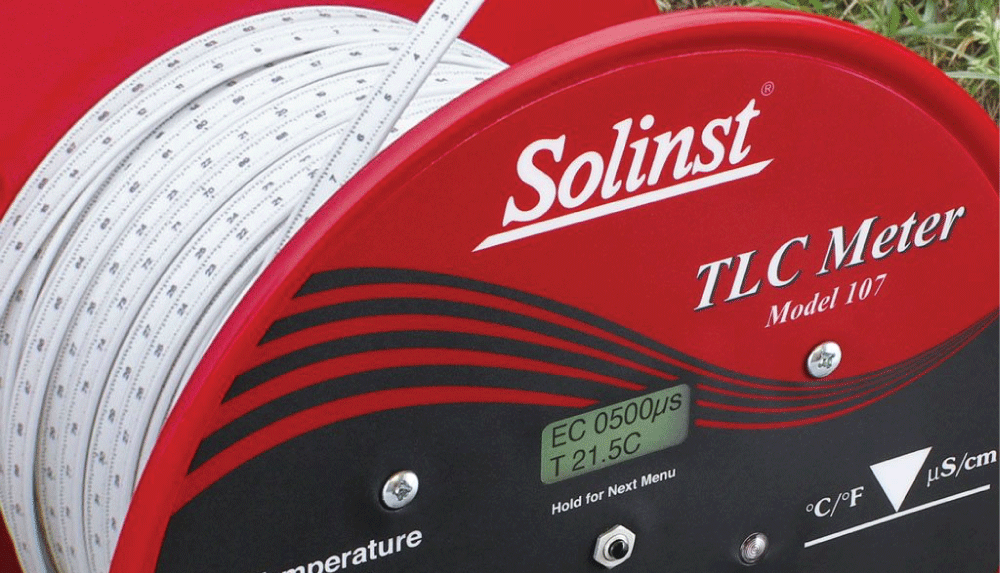

The Model 107 TLC Meter is ideal for profiling conductivity and temperature in wells and open water, for salt-water intrusion studies, and a general indication of contamination levels. The 3/4″ (19 mm) diameter probe is attached to Solinst PVDF flat tape; accurately laser marked every 1/100 ft or each millimeter. Lengths up to 1000 ft or 300 m, mounted on a Solinst reel.

Description


Solinist Model 107 TLC Meter

Features

  • Certified – Intrinsically safe to CSA and ANSI/UL standards, class 9098-1
    or 9098-81 (USA) for hazardous locations and Class I groups A,B,C and D

  • Electronic Module (IP65) – Automatic shut off after 10 minutes, removable for easy cleaning and servicing

  • Steel Tape – high tensile steel, jacketed with Kynar, high break strength, stretch resistant and lifelong legibility – markings in metric (mm) or engineering scale (1/100’)

  • Durable PVDF non-stretch tape

  • Improved electrical properties

  • Thicker dog bone design prevents clinging to sides of the wall

  • Permanently laser marked every 1/100 ft or each mm

Applications

  • Profiling conductivity and temperature in wells and
    open water

  • Salinity studies

  • Testing for water quality impairments from road salt

  • Tracer tests

  • General indication of chemical contamination leve


Specifications

Operating Temperature of reel
-20°C to +50°C
Submerged operating temperature (tape/probe)
-20°C to +60°C
Probe Temperature compensation range
-15°C to +50°C (5°F to 122°F)
Temperature accuracy
+/- 0.2°C or +/- 0.4°F
Conducitvity ranges
Full range: 0 to 80,000 uS/cm
Calibrated range: 500 to 80,000 uS/cm


Conductivity accuracy
5% of reading or 100 µS
(which ever is greater)
Wetted materials (tape/probe)
PVDF, Santoprene, Delrin, Viton,
316 stainless steel, platinum-plated
copper
Probe pressure rating
Fully submersible to depth of all tape
lengths
Reel IP Rating
IP64 (dust and splash proof)

Resources


Solinist Model 107 TLC Meter DataSheet
